Description
Features
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output
- Includes one-piece molded bezel for factory-style appearance
- Plug and play no modification needed
- Durable powdercoated aluminum extrusion
- Engineered and Assembled in USA

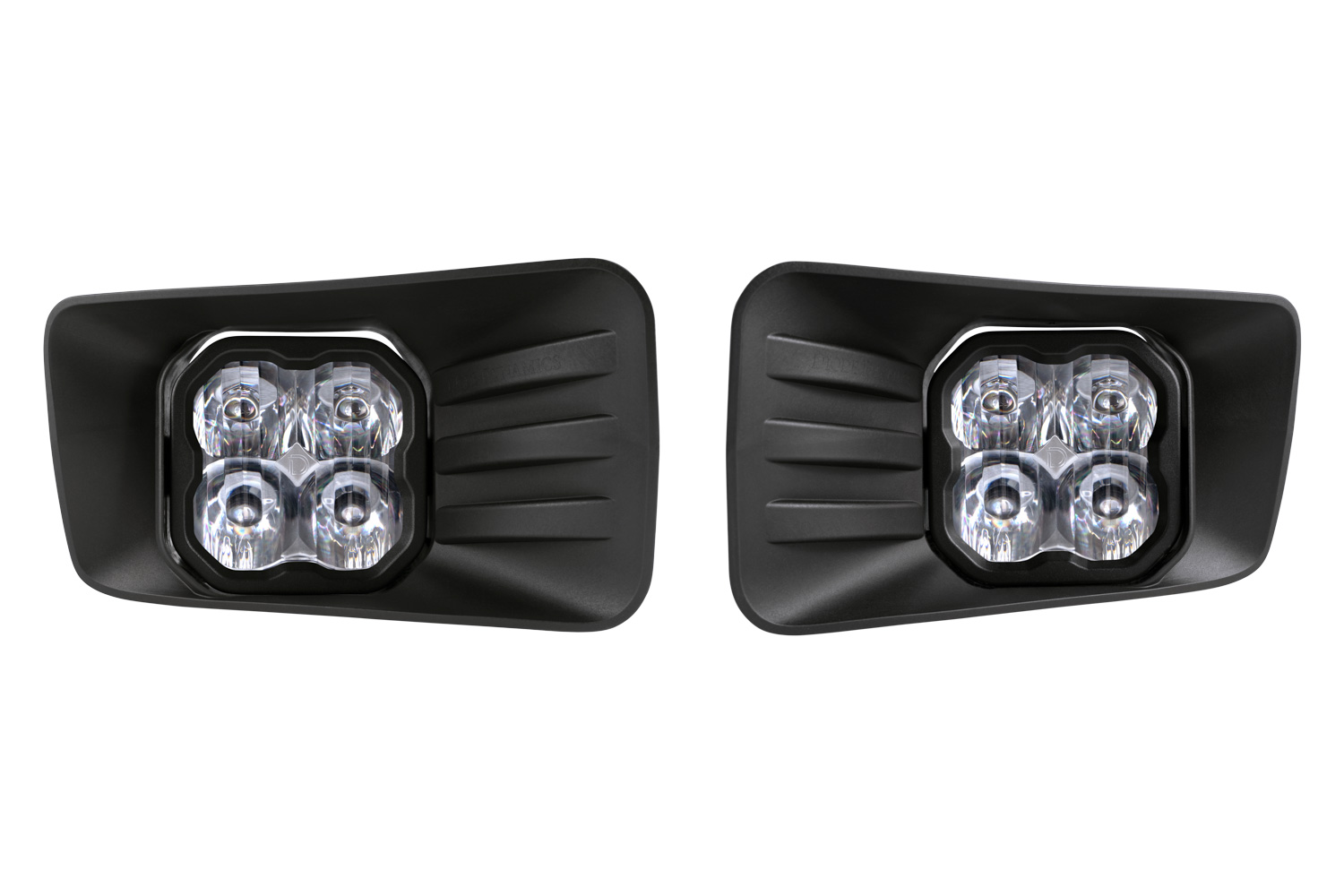

Overview. Upgrade your fog lights with our SS3 Type CH Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included one-piece molded bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!

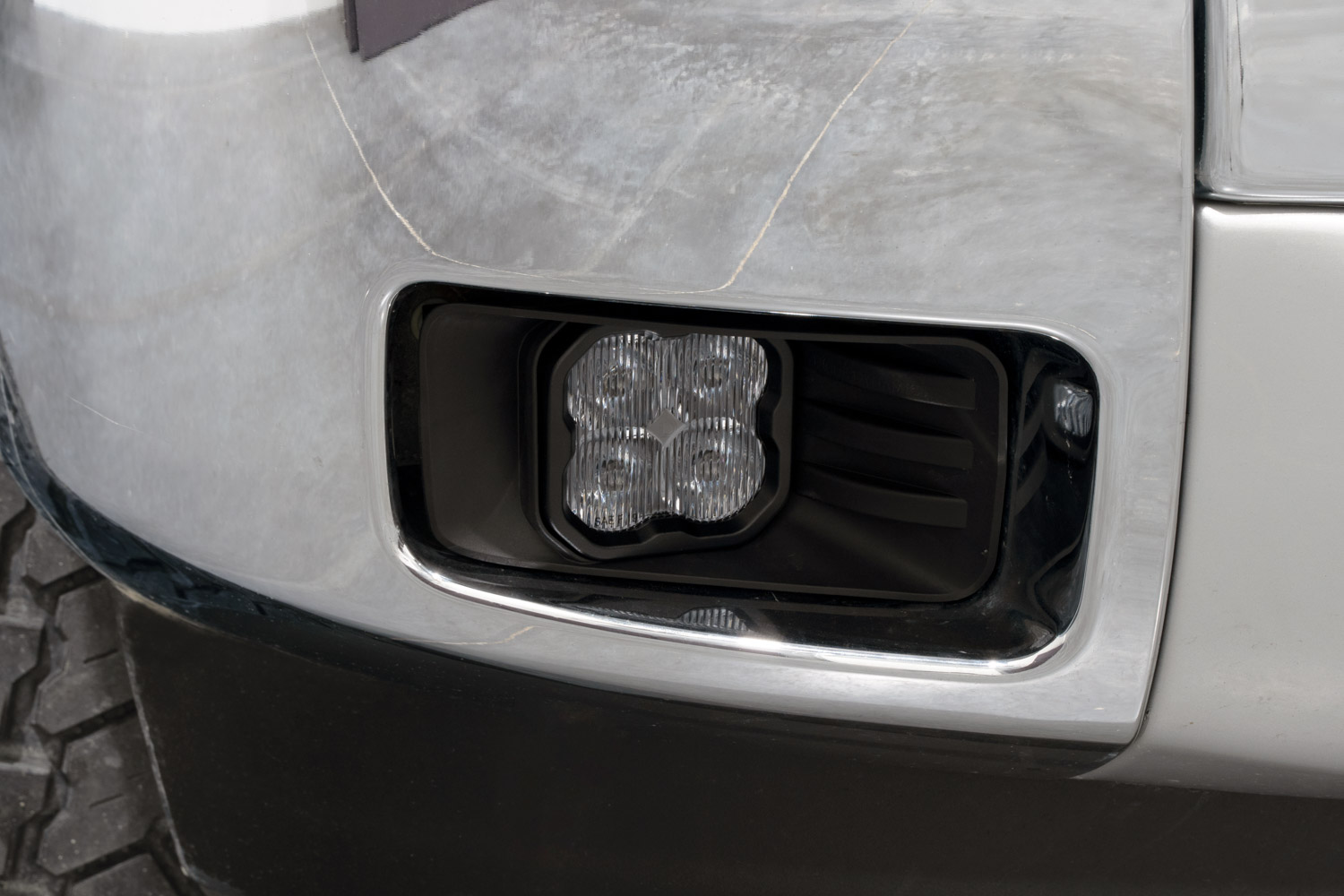

Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! A pair of 5202-size and PSX26W-size adapters are included with the kit allowing you to connect the lights to your factory bulb sockets. The lights can be easily aimed after installation using the factory aiming screw.

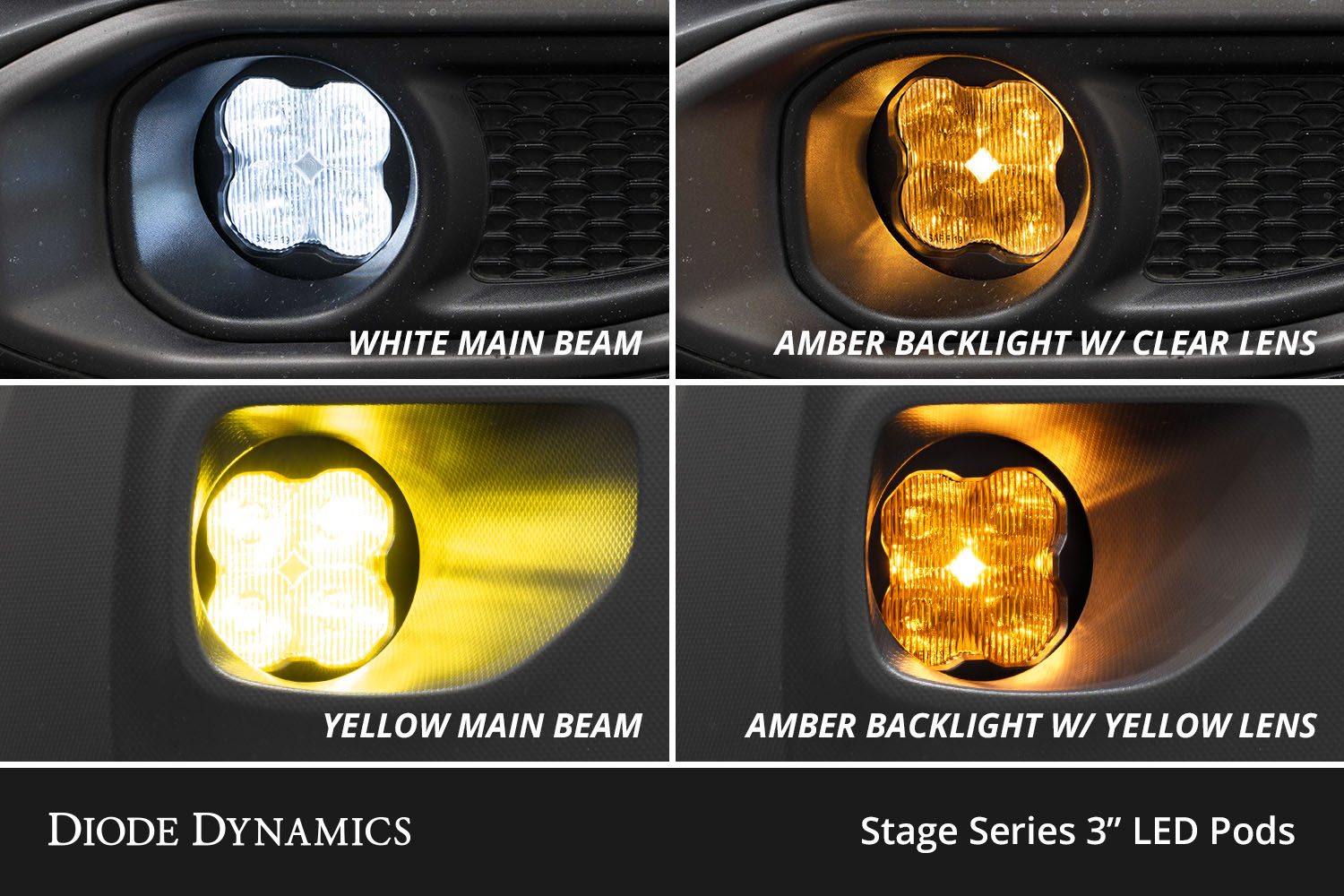

Backlight Functionality. The Stage Series 3in LED Pod is now available with a distinctive backlight in a brilliant amber color. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.

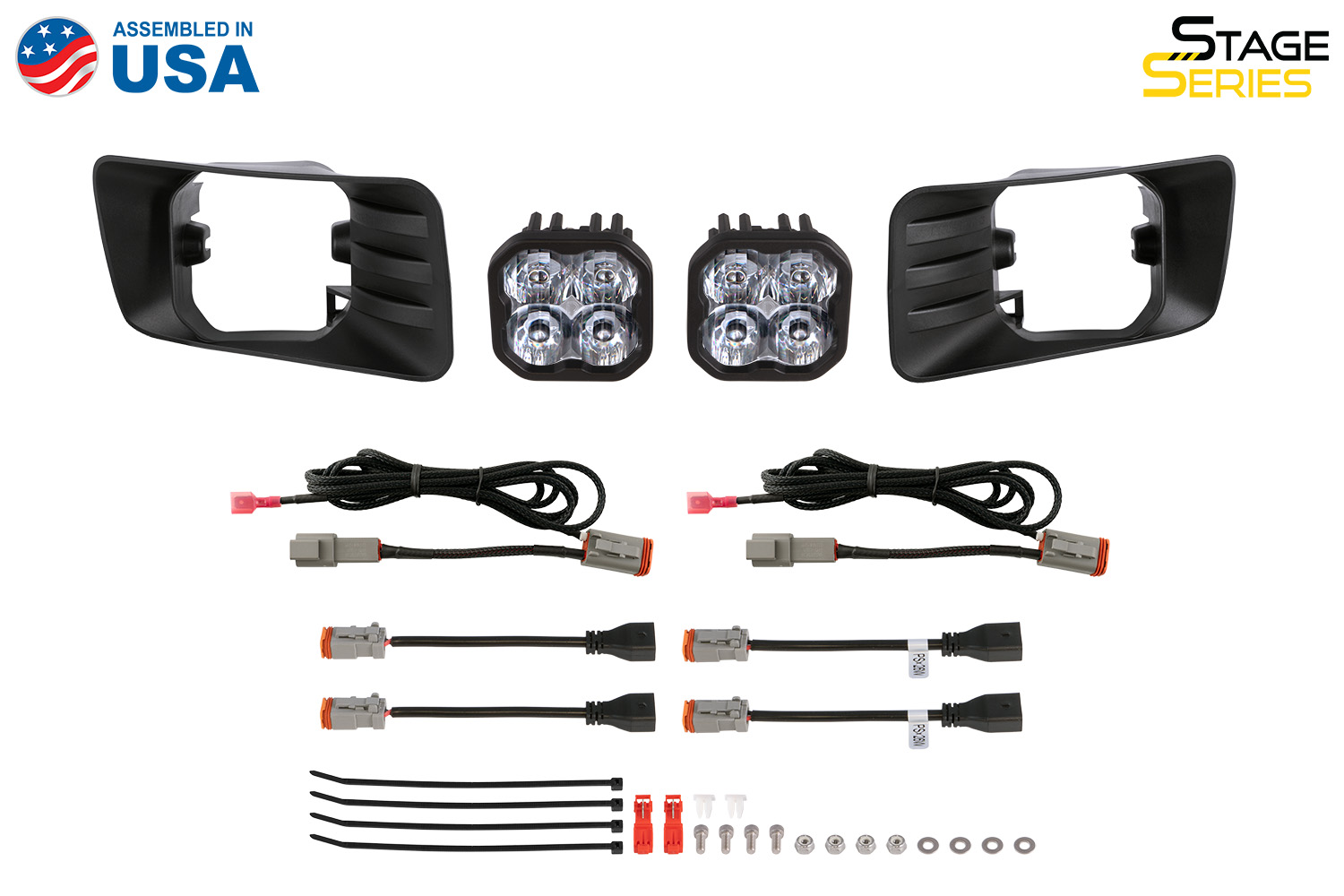

Included in the box:- Two (2) SS3 standard LED pods
- Two (2) Type CH brackets
- Two (2) 5202 2-pin DT adapters
- Two (2) 5202 4-pin DT adapters
- Two (2) PSX26W 2-pin DT adapters
- Two (2) PSX26W 4-pin DT adapters
- Four (4) T-taps
- Four (4) Zip ties
- Mounting hardware
