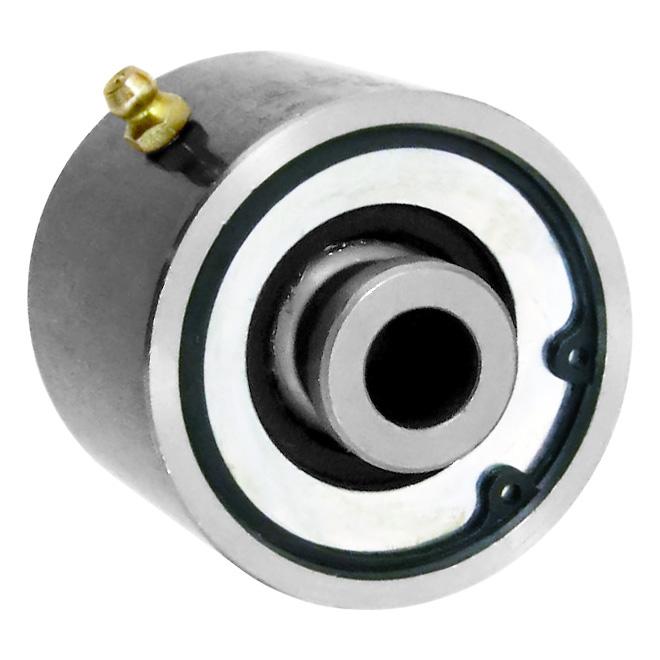

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

The outer shell is weldable .180 Inch wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 Inch o.d. and features a 2.440 Inch mounting width and a .468 Inch thru bolt hole.

Details:

• Johnny Joint Rod End
• 2 1/2 Inch
• Weld-On
• 2.440 Inch X 0.468 Inch Ball
• Externally Greased
• Each
