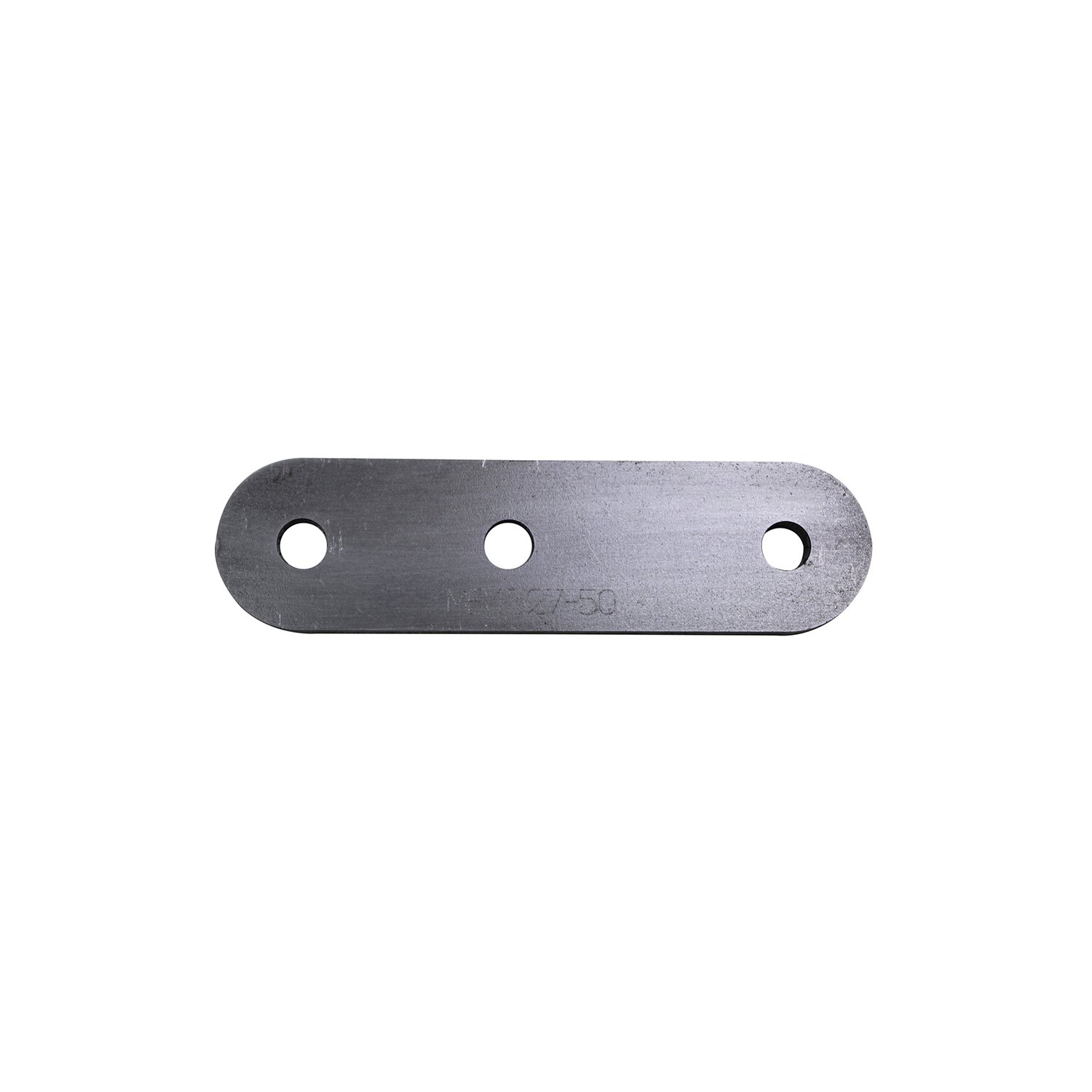

The Motobilt shackle plates are made out of 3/8 inch thick steel plate that is cnc laser cut. Each shackle plate uses 1/2 inch holes and a 3rd middle hole that can be used as a tie plate.

A small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications. Measurements are the span from centers on each hole.
Features:

• 5 Inch Straight Leaf Spring Shackle
• Straight long shackle 5 inch
• 3/8 inch thick steel plate
• Shackle plate uses 1/2 inch holes and a 3rd middle hole
• Sold as a pair (2 plates)

Note:

• Small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications
• Measurements are the span from centers on each hole
