TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components.

The TeraFlex 3.5 Inch Alpine RT3 Outback Overland Short Arm Extended-Travel Suspension System is built to handle expedition-style overland travel such as the Canning Stock Route, the Silk Road, or your favorite trail. The Outback Overland builds on the standard Alpine RT3 by adding heavy-rate Outback Lift Coil Springs that maintain lift height when loaded. The Outback Overland handles the toughest trails!

Adjustable Alpine IR Short Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 0-4.5 Inch Lifts.

Independent Rotation (IR) Bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail.

HD Forged Adjustable Track Bars and Track Bar Brackets improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

Extended-Travel Suspension Systems include carefully selected components to safely provide 16 Inch of rear suspension travel.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain. These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine RT Suspension Systems are for the Jeeper who wants it all!
Does Not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve compression and rebound for optimal vehicle stability. Available separately.

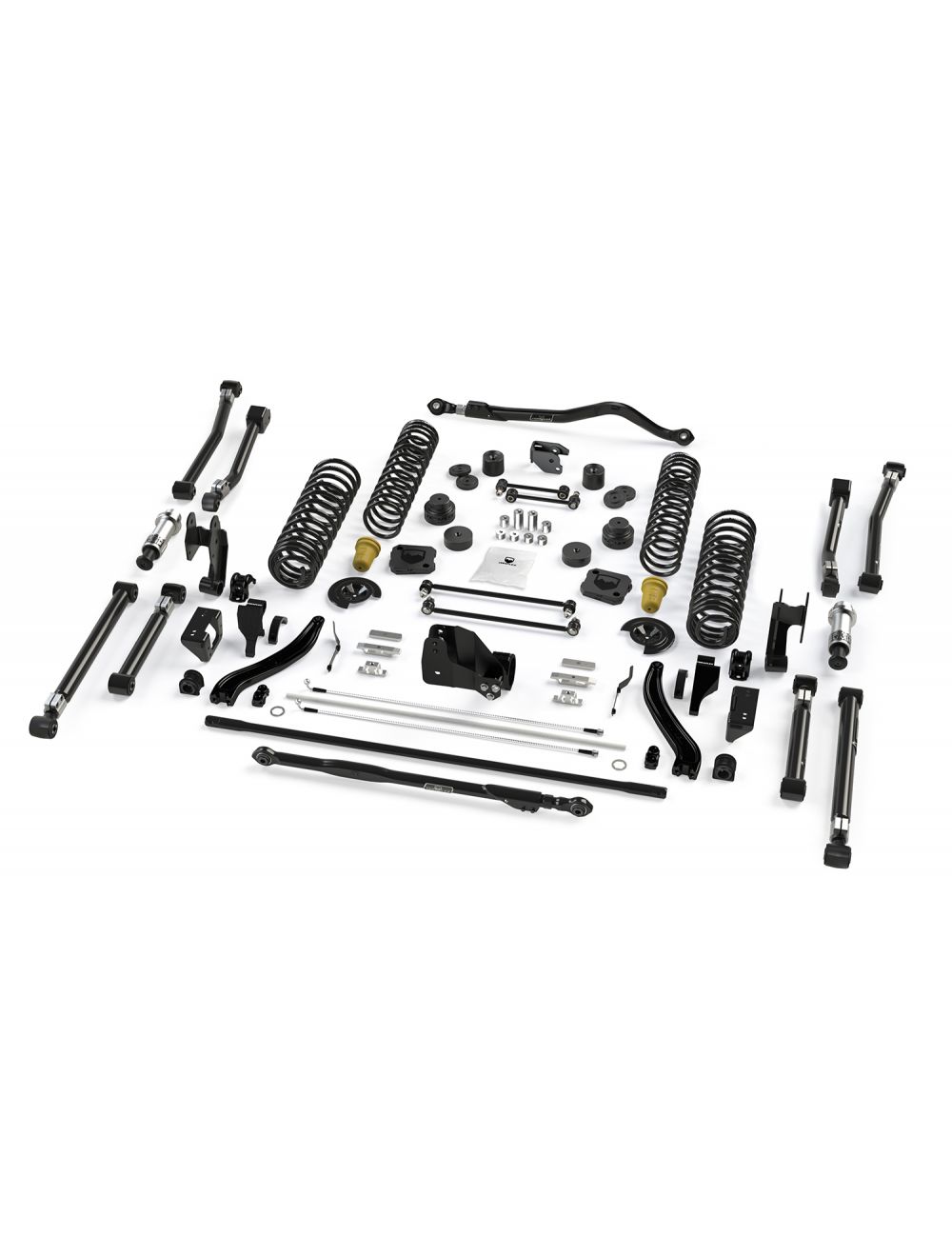

Includes:

• 3.5 Inch Lift Outback Coil Spring Pair (Front: # 1873010) (Rear: # 1873110)
• Alpine IR Short Arm Kit - 8-Arm (0-4.5 Inch Lift) (# 1417550)
• Extended-Travel Axle Bracket Kit - Rear Upper Control Arms (1 Inch+ Lift) (# 1938225)
• HD Forged Adjustable Track Bar (0-6 Inch Lift) (Front: # 1753420) (Rear: # 1764420)
• Track Bar Bracket Kit (Front Lower 2.5-3.5 Inch Lift: # 1953250) (Rear Lower 0-6.5 Inch Lift: # 1963600)
• SpeedBump & Progressive Bump Stop Kit - Front & Rear (2.5-3.5 Inch Lift) (# 1968352)
• Front Sway Bar Quick Disconnect Kit (0-4.5 Inch Lift) (# 1764000)
• Forged ST Sway Bar Kit - Rear (2 Inch+ Lift) (# 1774700)
• 1.5 Inch Driveshaft Lowering Kit - Rear (# 4801000)
• Extended-Travel Accessory Kit - Rear (3.5 Inch+ Lift) (# 4834100)
• Coil Spring Retainer Kit - Rear Upper & Rear Lower (# 4954000)
• Brake Line Anchor Kit (Front: # 1101255) (Rear: # 1101455)
• All necessary hardware
• And more

Fitment Vehicle(s):

• JT Gladiator (pickup)

Specs:

• Lift Height: 3.5 Inch

Max Tire Diameter:

• Sport/Overland Fenders: 33 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Sport/Overland Fenders: 35 Inch (w/ 3 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 35 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 37 Inch (w/ 2 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
