Upgrade your rear upper short control arm suspension to an adjustable triangulated Pro LCG 4-Link Long Arm Suspension System with the TeraFlex LJ LWB: Rear Upper Pro LCG 4-Link Long Arm & Bracket Upgrade Kit. Provides complete alignment adjustability and dependability for maximum performance on LJ Wrangler Unlimited models with 3-5 Inch Lifts.

CAD-engineered TeraFlex TJ: (Pro) LCG (4-Link) Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss are designed for maximum strength.

The 1/4 Inch-thick steel brackets are CNC laser cut and precision bent for accurate fitment. Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded.

These are the same components found in our high-end Enduro LCG and/or Pro LCG Long Arm Suspension Systems.

Triangulated Rear Upper Pro LCG 4-Link Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss convert the stock rear 5-link suspension to a triangulated rear 4-link suspension for increased flex while eliminating interference w/ other components.

Requires Lower LCG Long Arm & Bracket Upgrade Kit (TJ SWB: # 1447700) (LJ LWB: # 1447780). Combine this kit with the Front Upper Pro LCG Long Arm & Bracket Upgrade Kit (TJ: # 1443470) to step up to our Pro LCG Long Arm Suspension System.
Can be added to an existing suspension lift.

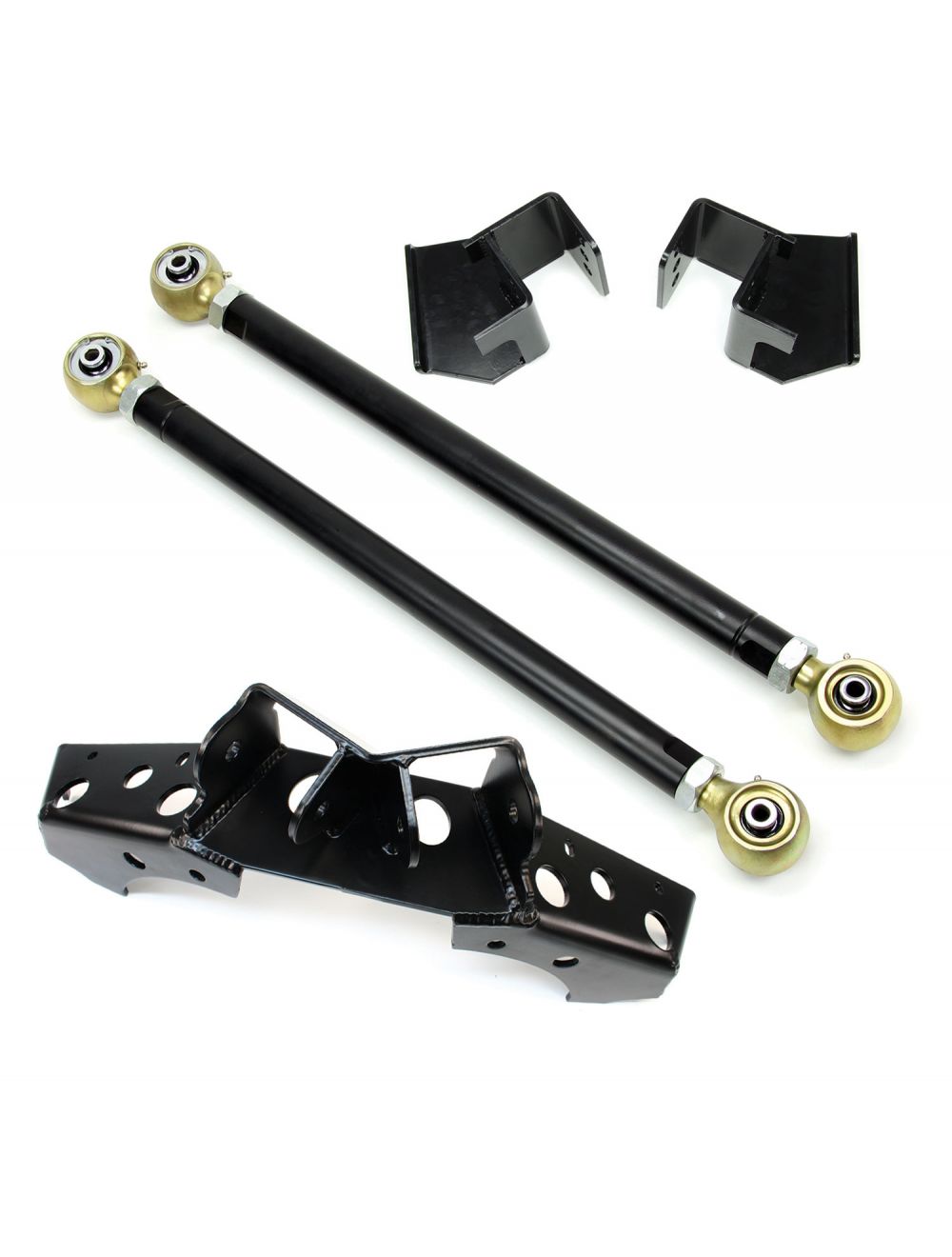

Includes:

• Pro LCG 4-Link Long Arm Pair - Rear Upper (# 1447707):
• Arm - Rear Upper (Left or Right) (# 1649880) x 2
• Pro LCG 4-Link Long Arm Frame Brackets:
• Bracket - Rear Upper Left (# 97881)
• Bracket - Rear Upper Right (# 97882)
• All necessary hardware
• Pro LCG 4-Link Long Arm Axle Truss:
• Truss - Rear Upper (# 1944044)
• All necessary hardware

Fitment Vehicle(s):

• LJ Wrangler Unlimited (long wheelbase)

Specs:

• Lift Height: 3-5 Inch

Control Arm Specs:

• LJ LWB: Pro LCG 4-Link Long Arm Pair - Rear Upper (# 1447707)
• Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
• Factory Length: 13-1/4 Inch
• Min. Length: 41-11/16 Inch
• Max. Length: 44-1/16 Inch
• Bolt - Both: 9/16 Inch (14mm)
• Joint - Axle: 4116260
• Joint - Frame: 4116270
