TeraFlex JL: Alpine Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3-6 Inch Lifts.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength.

Can be added to any existing suspension lift.

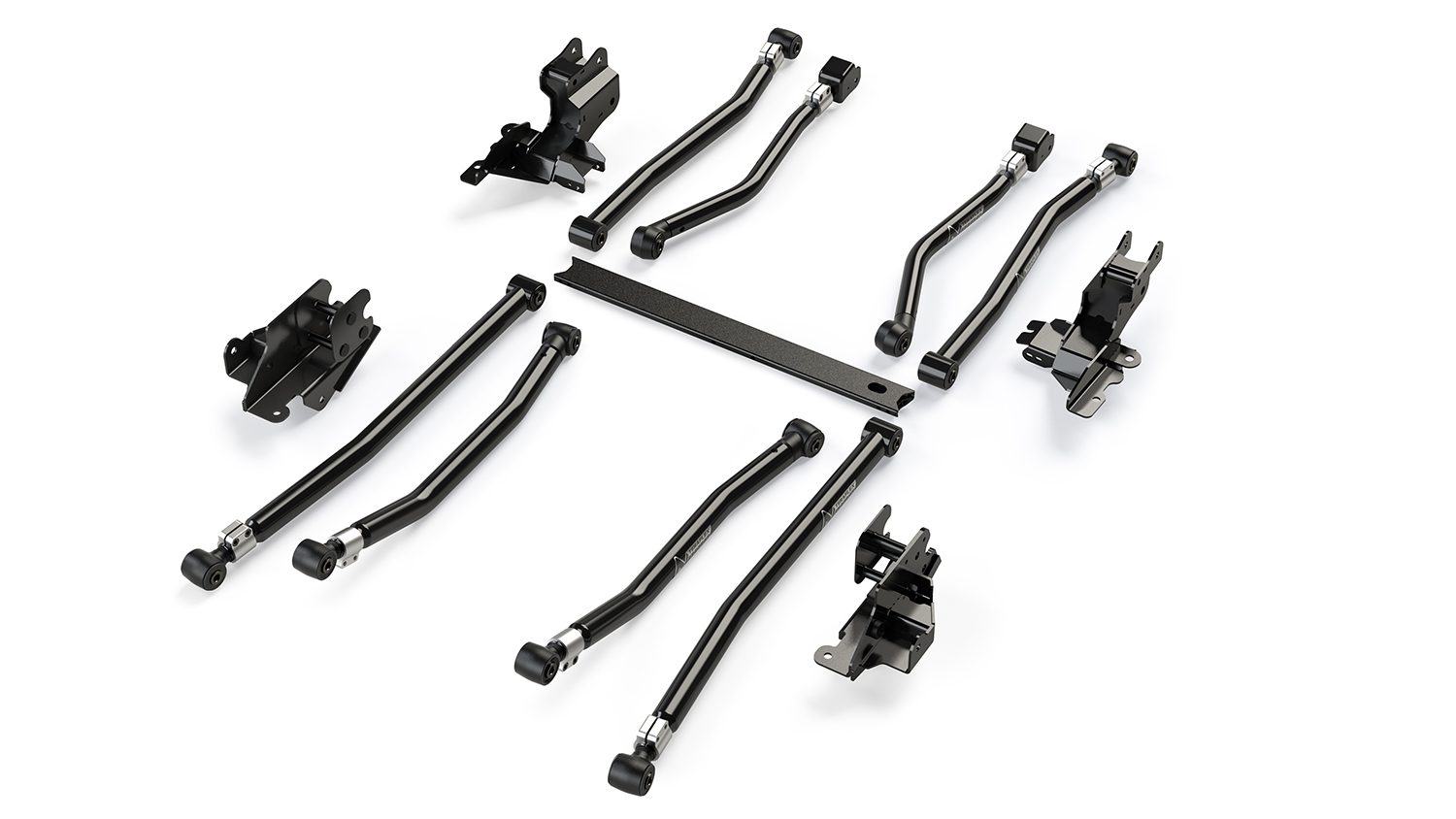

Includes:

• Alpine Long Arm Kit - 8-Arm (# 1316005):
• Arm Pair - Front Upper (# 1316520)
• Arm Pair - Front Lower (# 1316500)
• Arm Pair - Rear Upper (# 1316560)
• Arm Pair - Rear Lower (# 1316540)
• Long Arm Bracket Kit (# 1958000):
• Brackets - Front
• Brackets - Rear
• Suspension Crossmember - Front
• All necessary hardware

Fitment:

• JL Wrangler Unlimited (4-door)

Specs:

• Lift Height: 3-6 Inch
• Does Not fit 4-door JL Wrangler Unlimited 4xe hybrid models.

Control Arm Specs:

• JL / JT: Alpine Long Arm Pair - Front Upper (# 1316520):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 20-1/4 Inch
• Min. Length: 27-3/4 Inch
• Max. Length: 28-7/8 Inch
• Bolt - Axle: 12mm
• Bolt - Frame: 14mm
• Bushing - Axle: OEM
• Bushing - Frame: 611012
• JL / JT: Alpine Long Arm Pair - Front Lower (# 1316500):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 24 Inch
• Min. Length: 30-7/8 Inch
• Max. Length: 32 Inch
• Bolt - Both: 16mm
• Bushing - Both: 09-01-201-001
• JL: Alpine Long Arm Pair - Rear Upper (# 1316560):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 17-3/8 Inch
• Min. Length: 32-3/4 Inch
• Max. Length: 33-3/4 Inch
• Bolt - Both: 14mm
• Bushing - Axle: 611012
• Bushing - Frame: 611011
• JL: Alpine Long Arm Pair - Rear Lower (# 1316540):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 19-3/4 Inch
• Min. Length: 36-1/4 Inch
• Max. Length: 37-3/8 Inch
• Bolt - Both: 14mm
• Bushing - Both: 611011
